9141310, starter motor
| Item | Value |
|---|---|
| Product | starter motor |
| Magneton code | 9141310 |
| Rated Voltage | 12 V |
| Rated power | 1 kW |
| rated speed | 1500 ot/min |
| Starting point | 15 Nm |
| Number of pinion teeth | 9 |
| module | 2.1167 |
| Angle of View | 145; 325 ° |
| Weight | 3 kg |

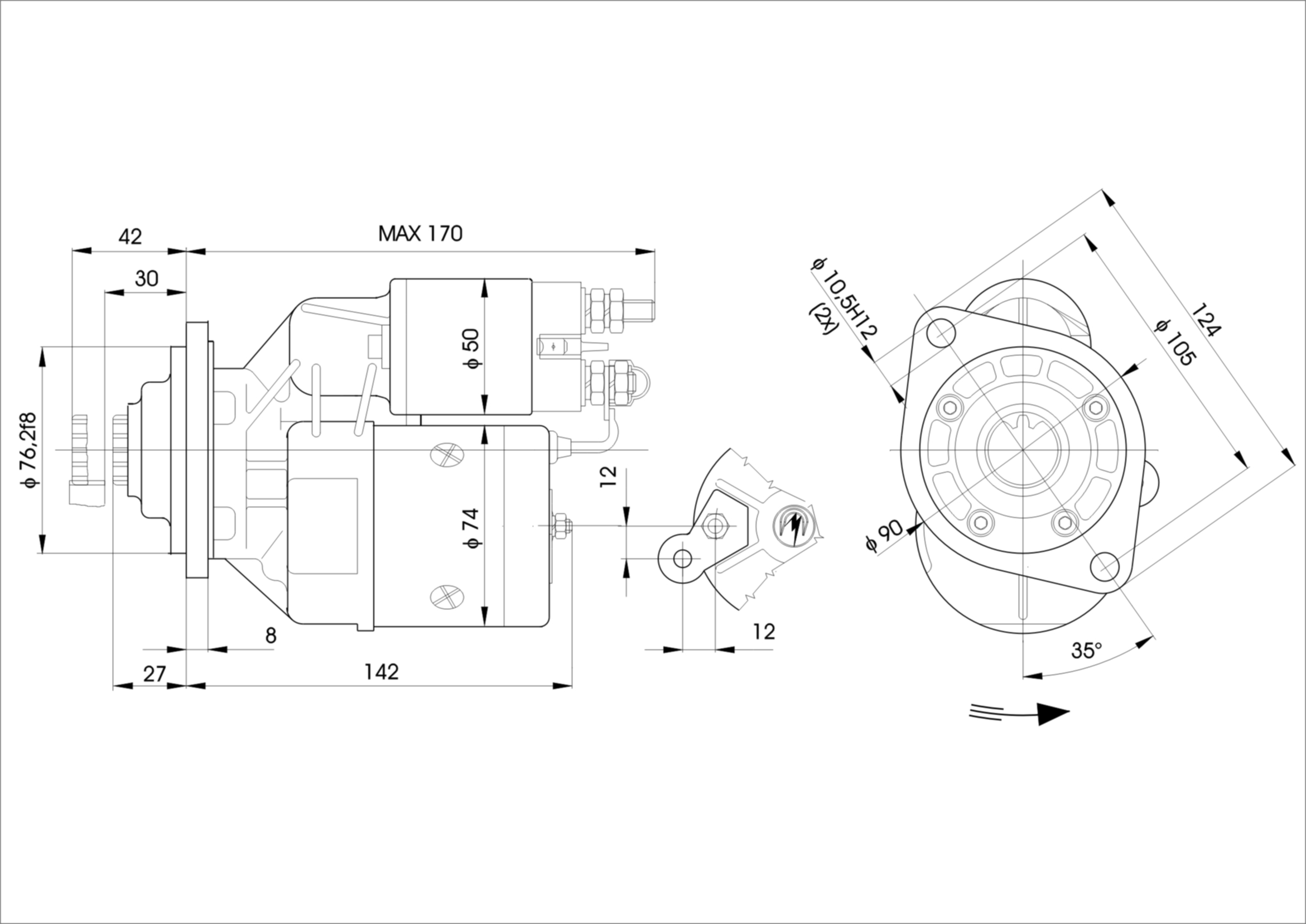

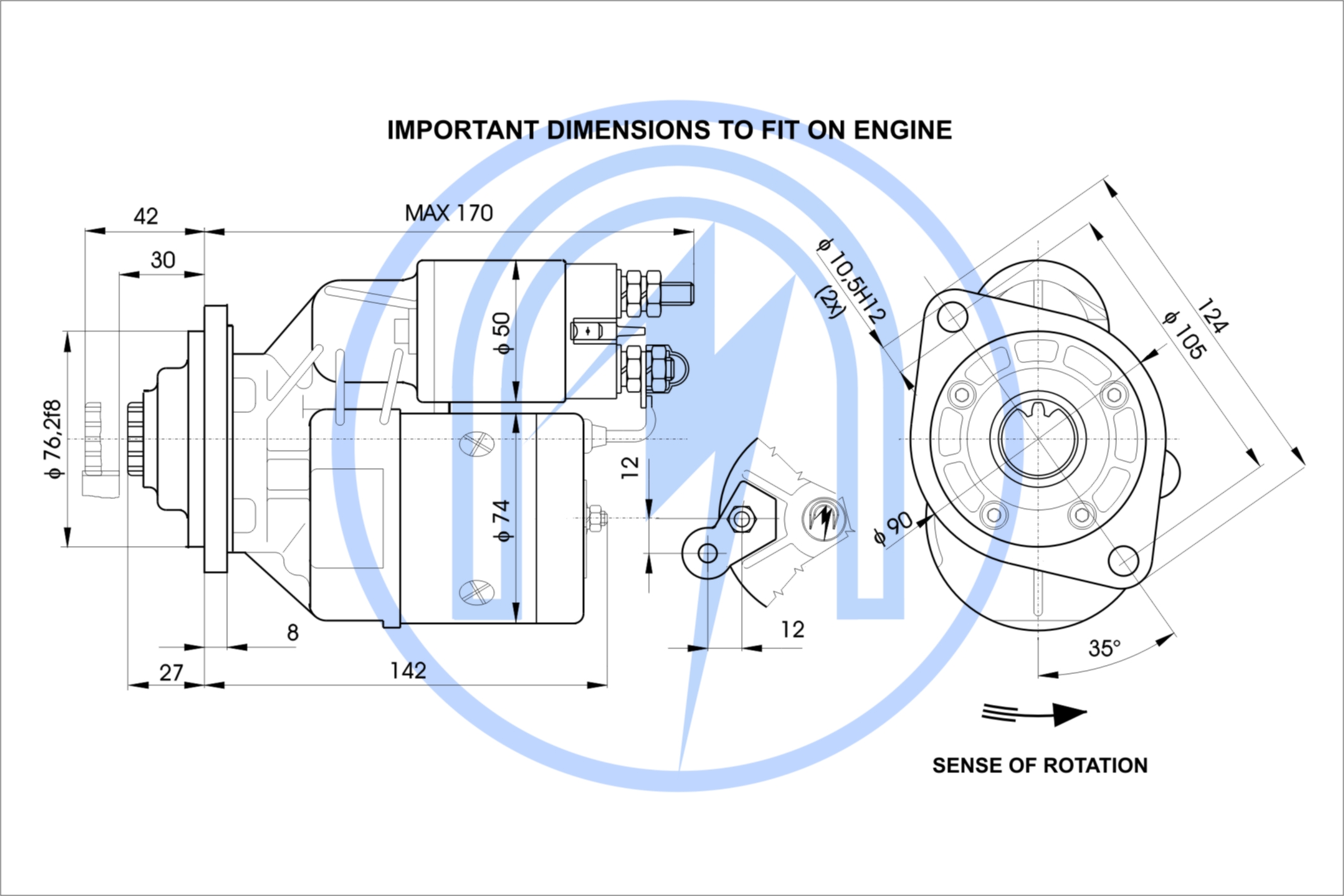

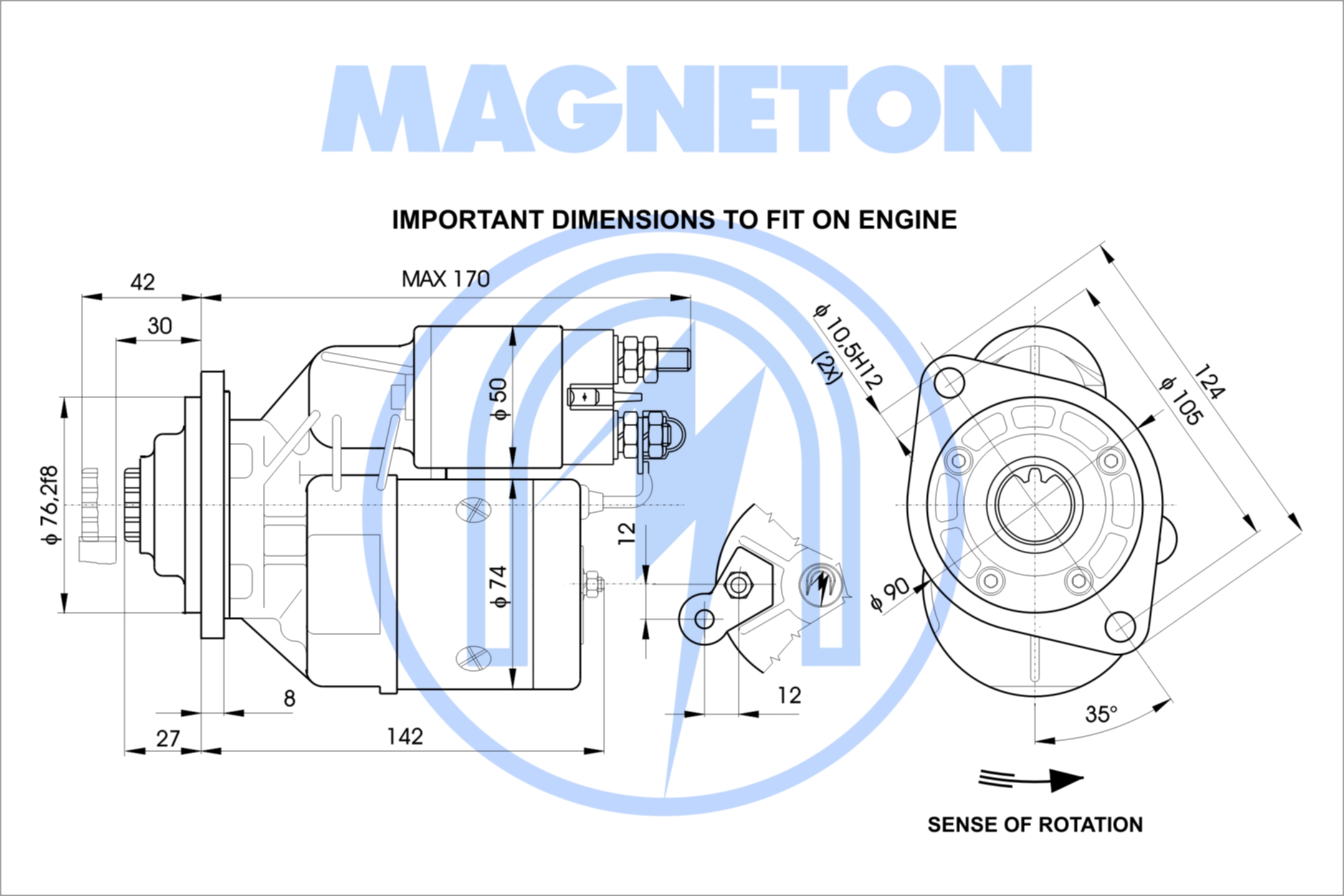

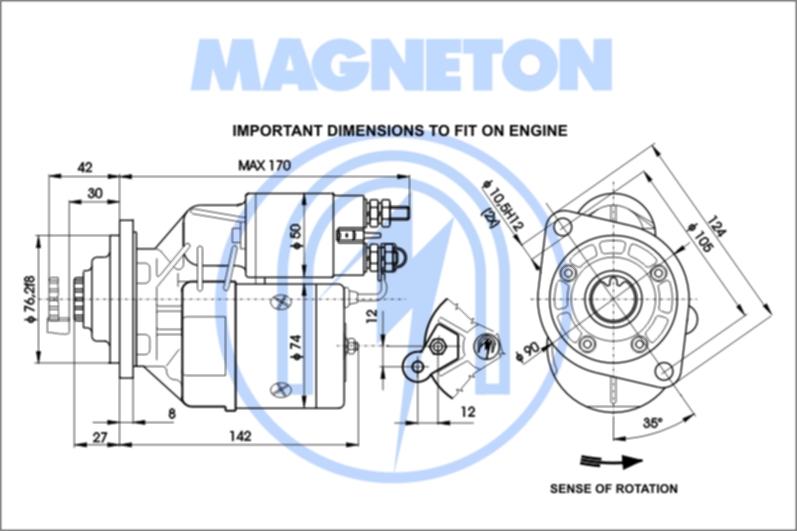

| Image |
|
| Mark and Model | Engine | Volume [l] | Power [kW] | Date of manufacture | Application |
|---|---|---|---|---|---|
| SKODA | 781.136 | engines | |||
| SKODA | 781.135 | engines | |||
| SKODA Favorit 135 | 781.135 | 1.3 | 43 | 01.09.1988 - 01.09.1994 | passenger car |
| SKODA Favorit 136 | 781.136 | 1.3 | 43 | 01.09.1988 - 01.09.1994 | passenger car |
| SKODA Felicia combi GLX | 135i | 1.3 | 40 | 01.01.1994 - 01.01.2001 | passenger car |
| SKODA Felicia combi GLXi | 136i | 1.3 | 50 | 01.01.1994 - 01.01.2001 | passenger car |
| SKODA Felicia combi LX | 135i | 1.3 | 43 | 01.01.1994 - 01.01.2001 | passenger car |
| SKODA Felicia combi LX | 135i | 1.3 | 40 | 01.01.1994 - 01.01.2001 | passenger car |
| SKODA Felicia combi LXi | 136i | 1.3 | 50 | 01.01.1996 - 01.01.2001 | passenger car |
| SKODA Felicia GLX | 135i | 1.3 | 43 | 01.01.1994 - 01.01.2001 | passenger car |
| SKODA Felicia GLX | 135i | 1.3 | 40 | 01.01.1994 - 01.01.2001 | passenger car |
| SKODA Felicia GLX | AEE | 1.6 | 55 | 01.01.1994 - 01.01.2001 | passenger car |
| SKODA Felicia GLXi | 136i | 1.3 | 50 | 01.01.1994 - 01.01.2001 | passenger car |
| SKODA Felicia LX | 135i | 1.3 | 43 | 01.01.1994 - 01.01.2001 | passenger car |
| SKODA Felicia LX | 135i | 1.3 | 40 | 01.01.1994 - 01.01.2001 | passenger car |
| SKODA Felicia Lxi | 136i | 1.3 | 50 | 01.01.1994 - 01.01.2001 | passenger car |
| SKODA Felicia pickup LX | 135i | 1.3 | 43 | 01.01.1994 - 01.01.2001 | passenger car |
| SKODA Felicia pickup LX | 135i | 1.3 | 40 | 01.01.1994 - 01.01.2001 | passenger car |
| SKODA Felicia pickup LXi | 136i | 1.3 | 50 | 01.01.1994 - 01.01.2001 | passenger car |
| SKODA Forman 135 | 781.135 | 1.3 | 43 | 01.10.1990 - 01.09.1993 | passenger car |
| SKODA Forman 136 | 781.136 | 1.3 | 43 | 01.10.1990 - 01.09.1993 | passenger car |
| SKODA Forman 136 | 781.136 | 1.3 | 01.10.1990 - 01.09.1993 | passenger car |
| Manufacturer | Original number |
|---|---|
| ADI | DEM50561M |
| BOSCH | 0986015701 |
| DELCO REMY | DRS5701 |
| DELTA | A75460 |
| FARCOM | 103316 |
| FARCOM | 103737 |
| H&B | 42141310 |
| HC-PARTS | CS798 |
| HELLA | 8EA726187-001 |
| HELLA | 8EA732653-001 |
| LUCAS | LRS785 |
| LUCAS | LRS492 |
| QH | DRS15701 |
| REAL | 3204FH0192 |
| SKODA AUTO | 443115142350 |
| SKODA AUTO | 6U0911023B |
| SKODA AUTO | 11590400 |
| SUD EST | 11399 |
| VALEO | 455977 |
| VW | 6U0911023B |
| VW | 6U0911023A |
| VW | 6U0911023X |
| VW | 6U0911023AX |
| VW | 6U0911023 |
| Component Name | Part number |
|---|---|
| Armature assy | 7150.882 |
| Assembled contactor | 7150.872 |
| Bearing | 324 137 038 |
| Bearing | 324 165 006 |
| Front cover | 6954.930 |
| Pinion drive | 7150.860 |
| Rear cover | 1658.400 |
| Stator with holder | 7150.892 |
| Transmission cover | 6954.940 |
